Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 4

J

John

Member
ItemMachine CodeCall out
Caster Table Type M3D1783
LCIT PB3170D695-17 (NA)4
LCIT RT3030D696-17 (NA)5
Internal Shift Tray SH3070D6919
Bridge Unit BU3070D6858
1 Bin Tray BN3110D6927
Side Tray Type M3D72510
Fax Option Type M3D163-01 (NA)-
G3 Interface Unit Type M3D163-07 (NA)-
Memory Unit Type B 32MBG578-
IEEE 802.11a/g/n Interface Unit Type M2D164-01-
Memory Unit Type M3 2GBD164-03-
Fax Connection Unit Type M3D165-01 (NA)-
Postscript3 Unit Type M3D165-05 (NA)-
Camera Direct Print Card Type M3D165-13-
Browser Unit Type M3D165-15 (NA)-
SD card for NetWare printing Type M3D165-19-
IPDS Unit Type M3D165-20 (NA)-
OCR Unit Type M2D166-25 (NA)-
Smart Card Reader Built-in Unit Type M2D739-06-
Imageable Area Extension Unit Type M3D739-07-
Handset HS3020D739-051
Marker Type 30H903-
ADF Handle TypeCD593-81-
IEEE 1284 Interface Board Type AB679-
Product Information





ItemMachine CodeCall out
Bluetooth Interfance Unit Type DD566-
File Format Converter Type ED377-04-
Copy Data Security Unit Type GD640-
Optional Counter Interface Unit Type AB870-
Key Counter Bracket Type M3D739-09-
Card Reader Bracket Type 3352D593-61-
Unicode Font Package for SAP(R) 1 LicenseB869-01-
Unicode Font Package for SAP(R) 10 LicenseB869-02-
Unicode Font Package for SAP(R) 100 LicenseB869-03-
DataOverwriteSecurity Unit Type HD377-06-
Waste Toner Bottle MP C6003D860-01-
Color Controller E-22CD730-01 (NA)-
Color Controller Connection Board Type M3D730-06-
Color Controller Connection Board Type M4D730-04-
External Keyboard Bracket Type M3D739-10-
Smart Operation Panel Type M3D148-81 (NA)-


Product Information

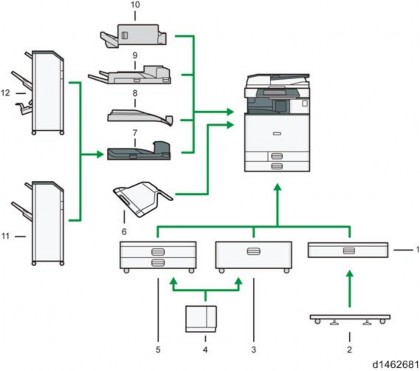

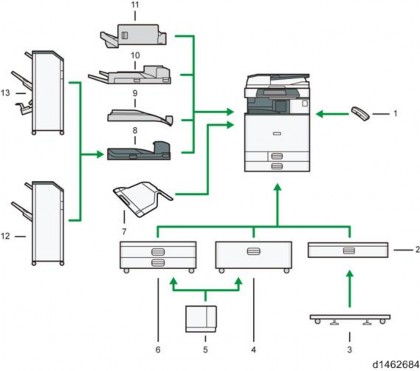

D146/D147 Options (mainly Europe and Asia)​

Mainframe (D146/D147): ARDF as standard







ItemMachine CodeCall out
Finisher SR3140D68711
Booklet Finisher SR3150D68612

Punch Unit PU3050		D717-27 (EU) D717-28 (SC)
-
Internal Finisher SR3130D69010

Punch Unit PU3040		D716-27 (EU) D716-28 (SC)
-
Paper Feed Unit PB3160D6935
Paper Feed Unit PB3150D6941
Caster Table Type M3D1782
LCIT PB3170D695-27 (EU/AP)3
LCIT RT3030D696-27 (EU/AP)4
ItemMachine CodeCall out
Internal Shift Tray SH3070D6918
Bridge Unit BU3070D6857
1 Bin Tray BN3110D6926
Side Tray Type M3D7259

Fax Option Type M3		D163-02 (EU) D163-03 (AP)
-
G3 Interface Unit Type M3D163-08 (EU/AP)-
Memory Unit Type B 32MBG578-
IEEE 802.11a/g/n Interface Unit Type M2D164-01-
Memory Unit Type M3 2GBD164-03-

Fax Connection Unit Type M3		D165-02 (EU) D165-03 (AP)
-

Postscript3 Unit Type M3		D165-06 (EU) D165-07 (AP)
-
Camera Direct Print Card Type M3D165-13-

Browser Unit Type M3		D165-16 (EU) D165-17 (AP)
-
SD card for NetWare printing Type M3D165-19-

IPDS Unit Type M3		D165-21 (EU) D165-22 (AP)
-

OCR Unit Type M2		D166-26 (EU) D166-27 (AP)
-
Smart Card Reader Built-in Unit Type M2D739-06-
Imageable Area Extension Unit Type M3D739-07--
Marker Type 30H903-
ADF Handle TypeCD593-81-
IEEE 1284 Interface Board Type AB679-
ItemMachine CodeCall out
Bluetooth Interfance Unit Type DD566-
File Format Converter Type ED377-04-
Copy Data Security Unit Type GD640-
Optional Counter Interface Unit Type AB870-
Key Counter Bracket Type M3D739-09-
Card Reader Bracket Type 3352D593-61-
Unicode Font Package for SAP(R) 1 LicenseB869-01-
Unicode Font Package for SAP(R) 10 LicenseB869-02-
Unicode Font Package for SAP(R) 100 LicenseB869-03-
SD Card for Fonts Type DD641-
DataOverwriteSecurity Unit Type HD377-06-
Waste Toner Bottle MP C6003D860-01-
Color Controller E-22CD730-01 (EU/AP)-
Color Controller Connection Board Type M3D730-06-
External Keyboard Bracket Type M3D739-10-
Smart Operation Panel Type M3D148-83 (AP)-
Product Information

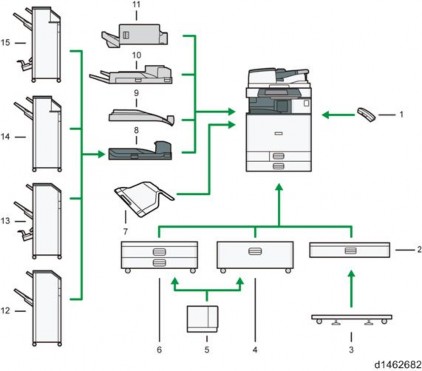

D148D149 Options (mainly North America)​

Mainframe (D148/D149): SPDF as standard







ItemMachine CodeCall out
Finisher SR3140D68712
Booklet Finisher SR3150D68613
Punch Unit PU3050D717-17 (NA)-
Booklet Finisher SR3170D68815
Finisher SR3160D68914
Punch Unit PU3060D706-00 (NA)-
Internal Finisher SR3130D69011
Punch Unit PU3040D716-17 (NA)-
Paper Feed Unit PB3160D6936
Paper Feed Unit PB3150D6942
Caster Table Type M3D1783
ItemMachine CodeCall out
LCIT PB3170D695-17 (NA)4
LCIT RT3030D696-17 (NA)5
Internal Shift Tray SH3070D6919
Bridge Unit BU3070D6858
1 Bin Tray BN3110D6927
Side Tray Type M3D72510
Memory Unit Type B 32MBG578-
Fax Option Type M4D167-01 (NA)-
G3 Interface Unit Type M4D167-07 (NA)-
IEEE 802.11a/g/n Interface Unit Type M2D164-01-
Memory Unit Type M3 2GBD164-03-
Fax Connection Unit Type M4D166-01 (NA)-
Postscript3 Unit Type M4D166-05 (NA)-
Camera Direct Print Card Type M4D166-13-
Browser Unit Type M4D166-15 (NA)-
SD card for NetWare printing Type M4D166-19-
IPDS Unit Type M4D166-20 (NA)-
OCR Unit Type M2D166-25 (NA)-
Smart Card Reader Built-in Unit Type M2D739-06-
Imageable Area Extension Unit Type M3D739-07-
Handset HS3020D739-051
Marker Type 30H903-
ADF Handle TypeCD593-81-
IEEE 1284 Interface Board Type AB679-
Bluetooth Interfance Unit Type DD566-
Product Information





ItemMachine CodeCall out
File Format Converter Type ED377-04-
Copy Data Security Unit Type GD640-
Optional Counter Interface Unit Type AB870-
Key Counter Bracket Type M3D739-09-
Card Reader Bracket Type 3352D593-61-
Unicode Font Package for SAP(R) 1 LicenseB869-01-
Unicode Font Package for SAP(R) 10 LicenseB869-02-
Unicode Font Package for SAP(R) 100 LicenseB869-03-
DataOverwriteSecurity Unit Type HD377-06-
Waste Toner Bottle MP C6003D860-01-
Color Controller E-22CD730-01 (NA)-
Color Controller Connection Board Type M3D730-06-
Color Controller Connection Board Type M4D730-04-
External Keyboard Bracket Type M3D739-10-
Smart Operation Panel Type M3D148-81 (NA)-


Product Information

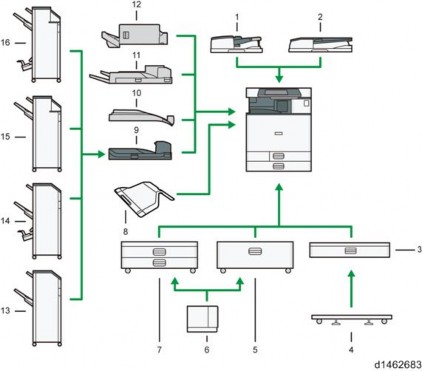

D148/D149 Options (mainly Europe and Asia)​







ItemMachine CodeCall out
Finisher SR3140D68713
Booklet Finisher SR3150D68614

Punch Unit PU3050		D717-27 (EU) D717-28 (SC)
-
Booklet Finisher SR3170D68816
Finisher SR3160D68915

Punch Unit PU3060		D706-01 (EU) D706-02 (SC)
-
Internal Finisher SR3130D69012

Punch Unit PU3040		D716-27 (EU) D716-28 (SC)
-
Paper Feed Unit PB3160D6937
Paper Feed Unit PB3150D6943
Caster Table Type M3D1784
ItemMachine CodeCall out
LCIT PB3170D695-27 (EU/AP)5
LCIT RT3030D696-27 (EU/AP)6
Internal Shift Tray SH3070D69110
Bridge Unit BU3070D6859
1 Bin Tray BN3110D6928
Side Tray Type M3D72511
ARDF DF3090D7792
SPDF DF3080D6831
Memory Unit Type B 32MBG578-

Fax Option Type M4		D167-02 (EU) D167-03 (AP)
-
G3 Interface Unit Type M4D167-08 (EU/AP)-
IEEE 802.11a/g/n Interface Unit Type M2D164-01-
Memory Unit Type M3 2GBD164-03-

Fax Connection Unit Type M4		D166-02 (EU) D166-03 (AP)
-

Postscript3 Unit Type M4		D166-06 (EU) D166-07 (AP)
-
Camera Direct Print Card Type M4D166-13-

Browser Unit Type M4		D166-16 (EU) D166-17 (AP)
-
SD card for NetWare printing Type M4D166-19-

IPDS Unit Type M4		D166-21 (EU) D166-22 (AP)
-

OCR Unit Type M2		D166-26 (EU) D166-27 (AP)
-
Smart Card Reader Built-in Unit Type M2D739-06-
ItemMachine CodeCall out
Imageable Area Extension Unit Type M3D739-07-
Marker Type 30H903-
ADF Handle TypeCD593-81-
IEEE 1284 Interface Board Type AB679-
Bluetooth Interfance Unit Type DD566-
File Format Converter Type ED377-04-
Copy Data Security Unit Type GD640-
Optional Counter Interface Unit Type AB870-
Key Counter Bracket Type M3D739-09-
Card Reader Bracket Type 3352D593-61-
Unicode Font Package for SAP(R) 1 LicenseB869-01-
Unicode Font Package for SAP(R) 10 LicenseB869-02-
Unicode Font Package for SAP(R) 100 LicenseB869-03-
SD Card for Fonts Type DD641-
DataOverwriteSecurity Unit Type HD377-06-
Waste Toner Bottle MP C6003D860-01-
Color Controller E-22CD730-01 (EU/AP)-
Color Controller Connection Board Type M4D730-04-
External Keyboard Bracket Type M3D739-10-
Smart Operation Panel Type M3D148-83 (AP)-
Product Information

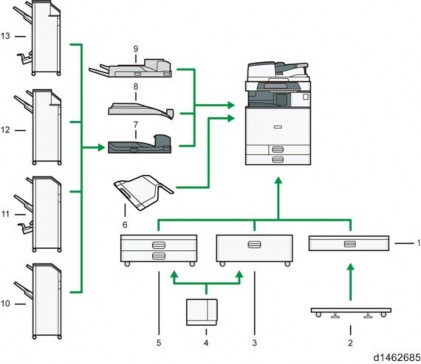

D150 Options (mainly North America)​

Mainframe (D150): SPDF as standard







ItemMachine CodeCall out
Finisher SR3140D68711
Booklet Finisher SR3150D68612
Punch Unit PU3050D717-17 (NA)-
Booklet Finisher SR3170D68814
Finisher SR3160D68913
Punch Unit PU3060D706-00 (NA)-
Paper Feed Unit PB3160D6936
Paper Feed Unit PB3150D6942
Caster Table Type M3D1783
LCIT PB3170D695-17 (NA)4
LCIT RT3030D696-17 (NA)5
ItemMachine CodeCall out
Internal Shift Tray SH3070D6919
Bridge Unit BU3070D6858
1 Bin Tray BN3110D6927
Side Tray Type M3D72510
Memory Unit Type B 32MBG578-
Fax Option Type M4D167-01 (NA)-
G3 Interface Unit Type M4D167-07 (NA)-
IEEE 802.11a/g/n Interface Unit Type M2D164-01-
Memory Unit Type M3 2GBD164-03-
Fax Connection Unit Type M4D166-01 (NA)-
Postscript3 Unit Type M4D166-05 (NA)-
Camera Direct Print Card Type M4D166-13-
Browser Unit Type M4D166-15 (NA)-
SD card for NetWare printing Type M4D166-19-
IPDS Unit Type M4D166-20 (NA)-
OCR Unit Type M2D166-25 (NA)-
Smart Card Reader Built-in Unit Type M2D739-06-
Imageable Area Extension Unit Type M3D739-07-
Handset HS3020D739-051
Marker Type 30H903-
ADF Handle TypeCD593-81-
IEEE 1284 Interface Board Type AB679-
Bluetooth Interfance Unit Type DD566-
File Format Converter Type ED377-04-
Copy Data Security Unit Type GD640-
Product Information





ItemMachine CodeCall out
Optional Counter Interface Unit Type AB870-
Key Counter Bracket Type M3D739-09-
Card Reader Bracket Type 3352D593-61-
Unicode Font Package for SAP(R) 1 LicenseB869-01-
Unicode Font Package for SAP(R) 10 LicenseB869-02-
Unicode Font Package for SAP(R) 100 LicenseB869-03-
DataOverwriteSecurity Unit Type HD377-06-
Waste Toner Bottle MP C6003D860-01-
Color Controller E-22CD730-01 (NA)-
Color Controller Connection Board Type M3D730-06-
Color Controller Connection Board Type M4D730-04-
External Keyboard Bracket Type M3D739-10-
Smart Operation Panel Type M3D148-81 (NA)-


Product Information



D150 Options (mainly Europe and Asia)​

Mainframe (D150): SPDF as standard







ItemMachine CodeCall out
Finisher SR3140D68710
Booklet Finisher SR3150D68611

Punch Unit PU3050		D717-27 (EU) D717-28 (SC)
-
Booklet Finisher SR3170D68812
Finisher SR3160D68913

Punch Unit PU3060		D706-01 (EU) D706-02 (SC)
-
Paper Feed Unit PB3160D6935
Paper Feed Unit PB3150D6941
Caster Table Type M3D1782
LCIT PB3170D695-27 (EU/AP)3


Similar threads

J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 9
Replies
0
Views
10
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 8
Replies
0
Views
10
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 7
Replies
0
Views
10
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 6
Replies
0
Views
20
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 5
Replies
0
Views
17
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 3
Replies
0
Views
42
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 2
Replies
0
Views
50
John
J
J
Ricoh MP C3003 C3503 C4503 C5503 Service manual Part 1
Replies
0
Views
40
John
J
J
Fix SC 550 error on Ricoh copier
Replies
0
Views
277
John
J
Top
